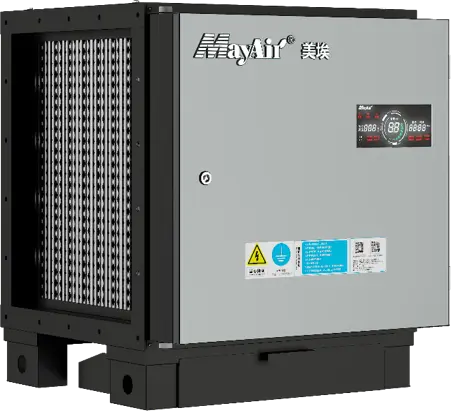

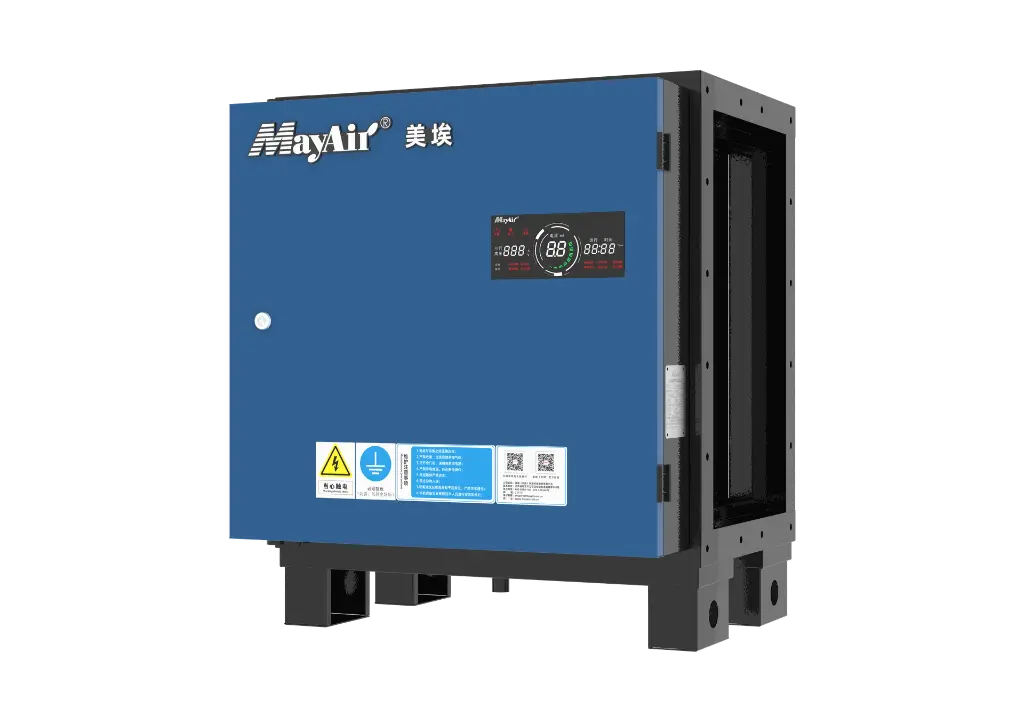

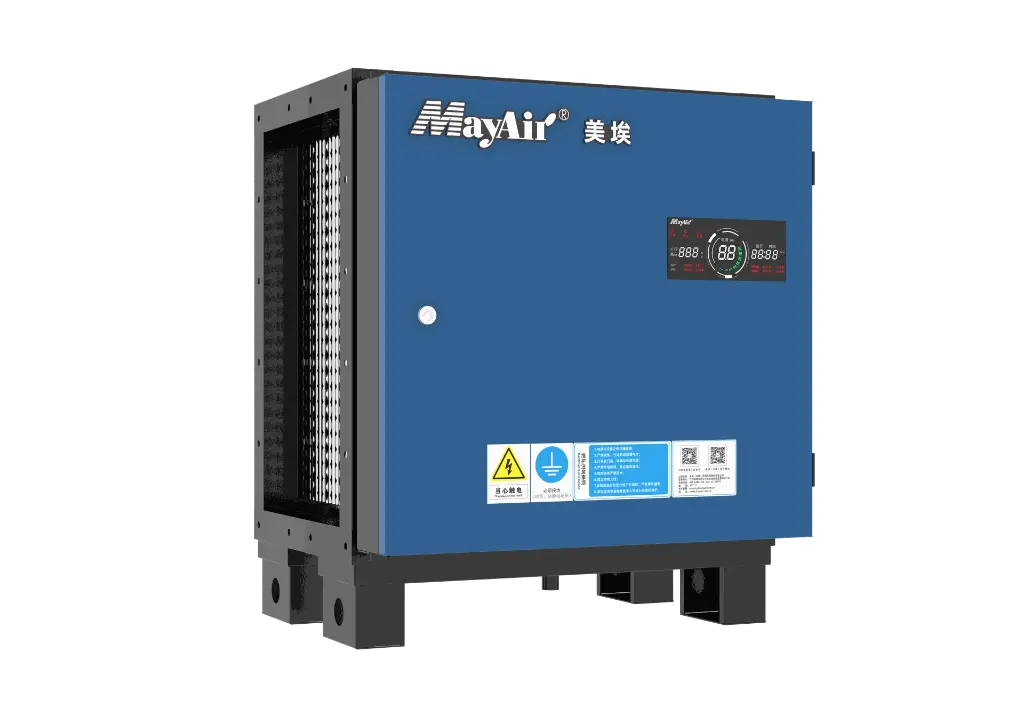

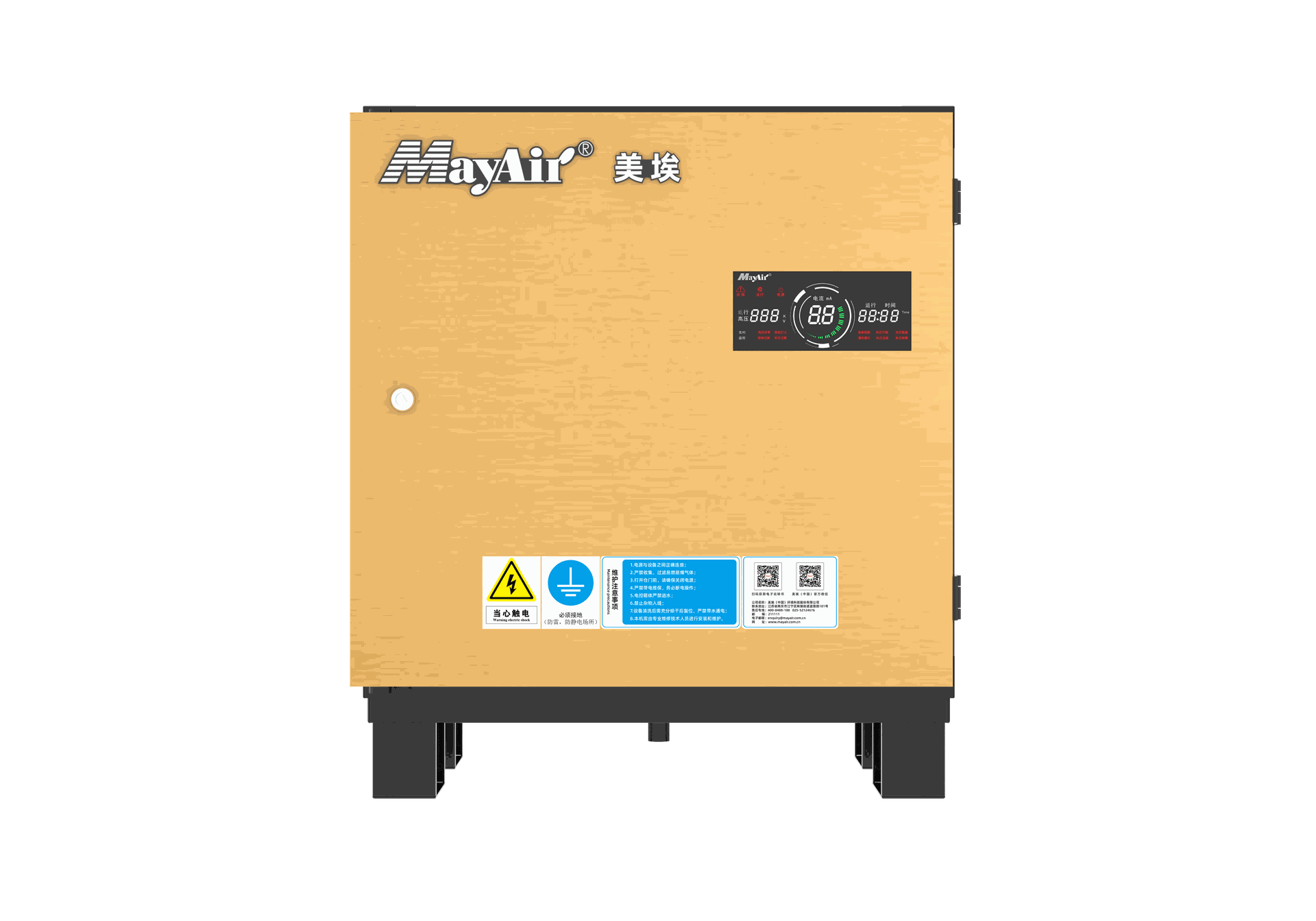

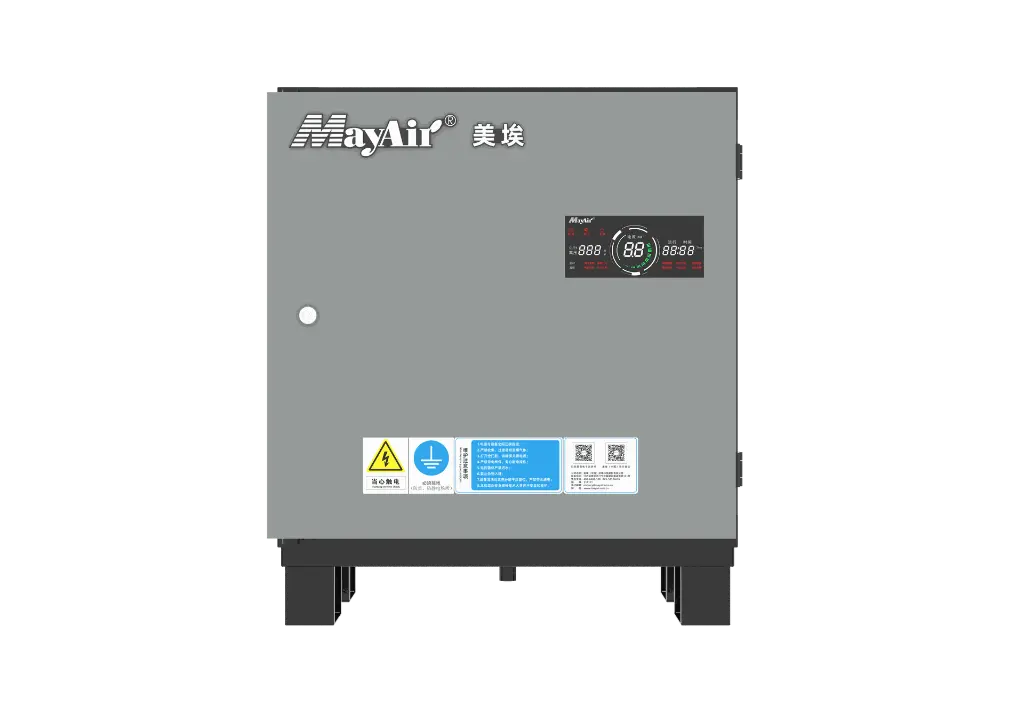

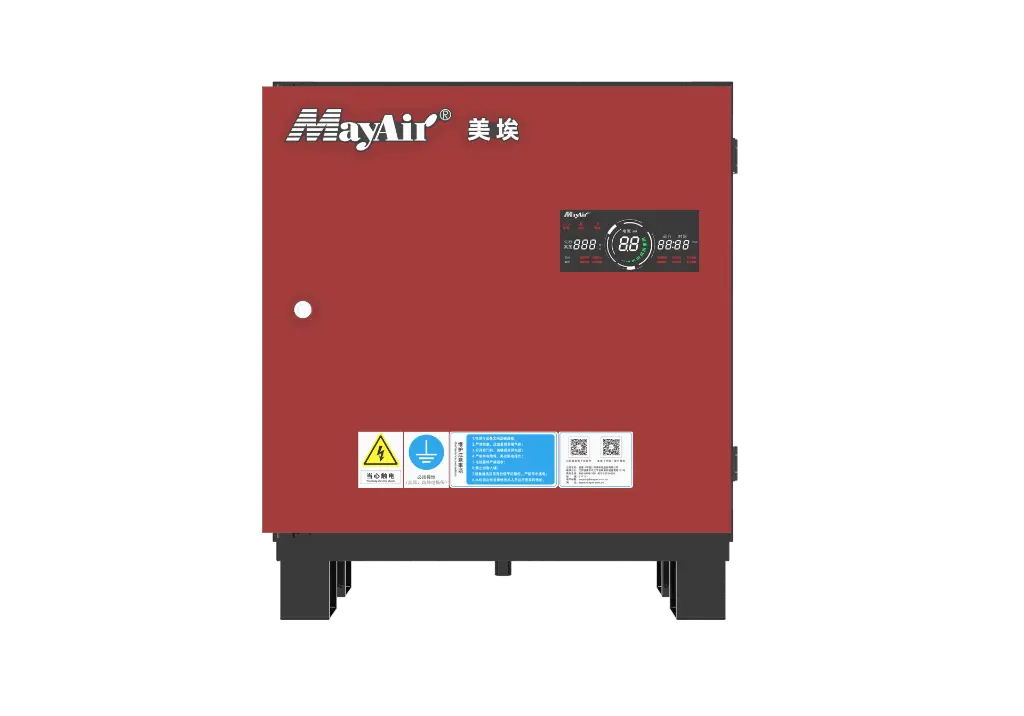

Fusion Series

Diverse Product Series to Meet Various Configuration Needs

The Fengshang Series is primarily installed at the end of kitchen exhaust pipelines for advanced treatment of oil fumes and odors. It utilizes multiple purification principles including mechanical interception, high-voltage electrostatic ionization, UV oxidation, and activated carbon adsorption.

The Fengshang Series includes five major product lines:

FS Series, FS-UV Series, FSD Series, FSD-UV Series, and CA-CBU Series.

Document Download

$ 0.00 $ 0.00

Call for Price

This combination does not exist.

​
Contact Us

Share

Product Features

  1. Electrostatic Oil Fume Purification Unit
  2. Airflow Range: 6,000 – 40,000 m³/h
  3. Purification Efficiency: 95%
  4. Recommended for Shandong, Jiangsu, Zhejiang, Guangdong, and Fujian cuisine, as well as home-style cooking.

Product Features

  1. Electrostatic Oil Fume Purification Unit
  2. Airflow Range: 4,000 – 36,000 m³/h
  3. Purification Efficiency: 98%
  4. Recommended for Sichuan and Hunan cuisine.

Product Features

  1. Electrostatic + Photolysis Composite Oil Fume Purification Unit
  2. Airflow Range: 6,000 – 40,000 m³/h
  3. Purification Efficiency: 95%
  4. Designed for environments with odor control requirements.
  5. Recommended for Jiangsu, Zhejiang, Guangdong, Fujian cuisine, home-style cooking, and fried foods.
  6. Models: FS60UV – FS400UV

Product Features

  1. PWM Dual-Stage Steady Power Module Control
  2. Ionization Voltage: 12,000V; Collection Voltage: 6,000V – Higher efficiency and improved stability
  3. Durable Materials – Stainless steel ionizing plates and aluminum collection plates for extended lifespan
  4. Modular Design – Flexible inlet/outlet airflow configuration based on installation needs
  5. Indicator Lights – For operation status, cleaning alerts, and fault alarms
  6. Safety Protection – Equipped with circuit breakers and interlock safety switches
  7. IP55 Protection Rating – Suitable for outdoor installation; resistant to dust, snow, and rain

Product Features

LED Display

Displays output voltage, current, and operating time

Stainless Steel Ionizer

Dual-stage high and low voltage layout for enhanced stability and high efficiency

Spiral Ceramic Insulator

Increased creepage distance for superior insulation performance

Sawtooth Discharge Electrode

High resistance to harsh environments; stable and reliable operation

Stainless Steel Conductive Spring

Larger contact surface for better conductivity; secure and drop-resistant

Intelligent Power Supply

RS485 communication with multiple layers of safety protection
